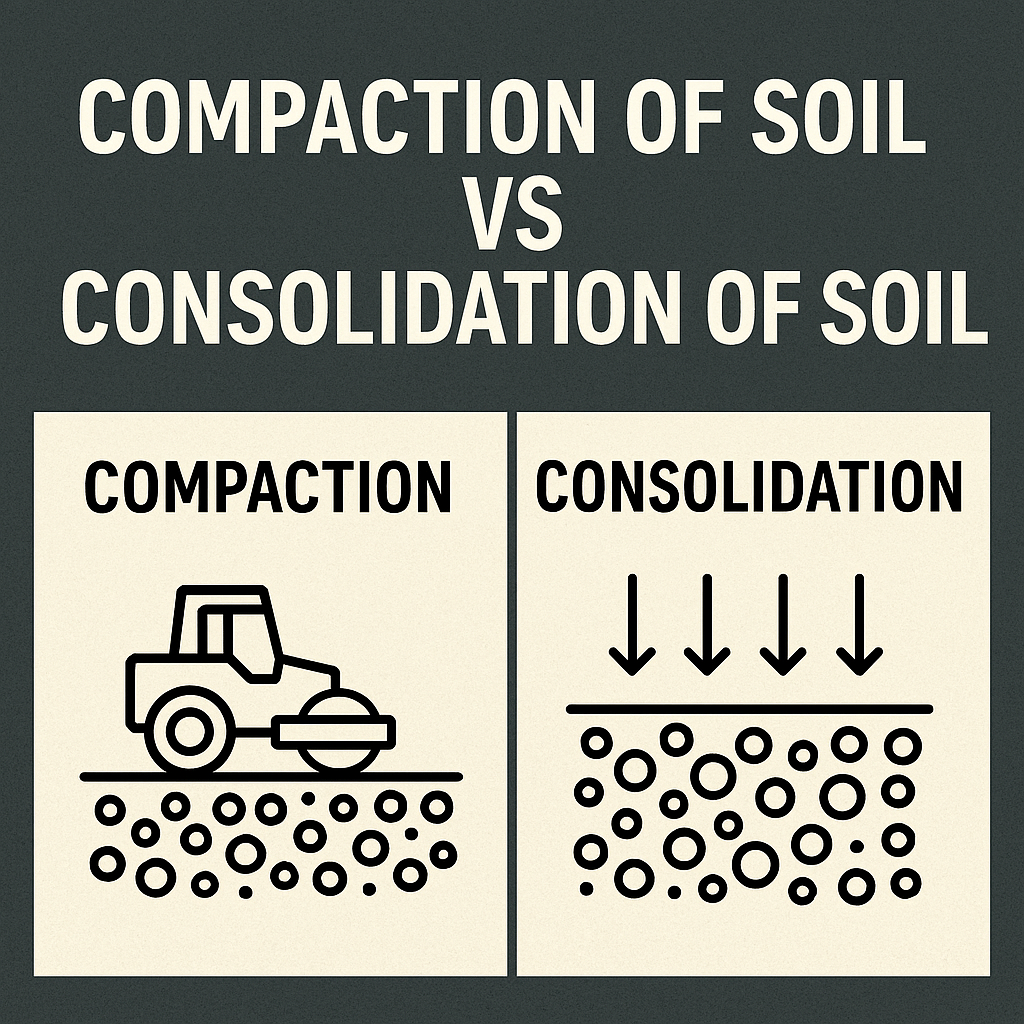

Compaction of Soil vs Consolidation of Soil

Understanding the difference between soil compaction and consolidation is vital for any civil engineering project. Both processes affect soil strength, bearing capacity, and settlement behavior – but they operate on different time scales and mechanisms. In this post, we’ll define each term, explore the underlying principles, compare their key parameters side by side, and show you how to calculate basic compaction metrics.

What Is Compaction of Soil?

Soil compaction involves expelling air from the void spaces between soil particles by applying mechanical energy. Typically, heavy rollers, rammers, or vibratory plates are used to achieve maximum dry density at optimum moisture content. Compaction increases shear strength, reduces compressibility, and improves bearing capacity—making it essential for road bases, embankments, and building pads.

Key points:

• Achieved in seconds to minutes under field or laboratory conditions
• Controlled via Proctor tests (Standard or Modified)
• Measured by the degree of compaction:
  • Dry density (ρd,field) vs. maximum dry density (ρd,max)
  • Degree of compaction =
    Dc = (ρd,fieldρd,max)×100%

For Black Cotton soil, sheepfoot roller is most suitable for compaction. The Gravel can be compacted by a vibratory roller. For sand, vibratory plate roller is the most suitable equipment for compaction.

What Is Consolidation of Soil?

Consolidation is the gradual reduction in soil volume due to expulsion of pore water under sustained load. It is governed by Terzaghi’s one-dimensional consolidation theory and controlled by soil permeability and compressibility. Unlike compaction, consolidation occurs over days, months, or even years – especially in fine-grained clays where drainage is slow.

Key points:

• Time-dependent settlement under static loads
• Characterized by consolidation coefficient (Cv) and compression index (Cc)
• Settlement SS can be estimated by: S = Cc H1 + e0⋅log(σ0′+Δσ′σ0′)
• H: thickness of compressible layer
• e0: initial void ratio
• σ0′ , Δσ′ : initial and added effective stress

Side-by-Side Comparison

Feature	Compaction	Consolidation
Mechanism	Mechanical densification	Pore-water drainage under sustained load
Time scale	Instant (seconds–minutes)	Long-term (hours–years)
Test method	Proctor (Standard/Modified)	Oedometer (Incremental loading)
Key parameters	ρd,max, Optimum moisture	Cv, Cc, e0
Applications	Road bases, embankments, pads	Foundations, dike consolidation
Control criteria	Degree of compaction (%)	Degree of consolidation or time factor

Conclusions and Takeaways

Compaction and consolidation both reduce soil void ratio, but through distinct processes and timescales. Selecting the right treatment depends on project requirements: rapid densification for earthworks versus long-term settlement control for foundations. Always verify in-situ compaction with field density tests, and predict consolidation settlements via oedometer data and Terzaghi’s formula.
