Posted by Shear walls are an essential part of most of high rise buildings, especially in regions with strong winds or earthquakes. In this guide, we will explore what shear walls are, how they are designed, where they are used, and why they are so important for keeping buildings safe. The aim is to explain these concepts in clear terms for students, while still covering the technical details.
Definition and Purposes of Shear Walls

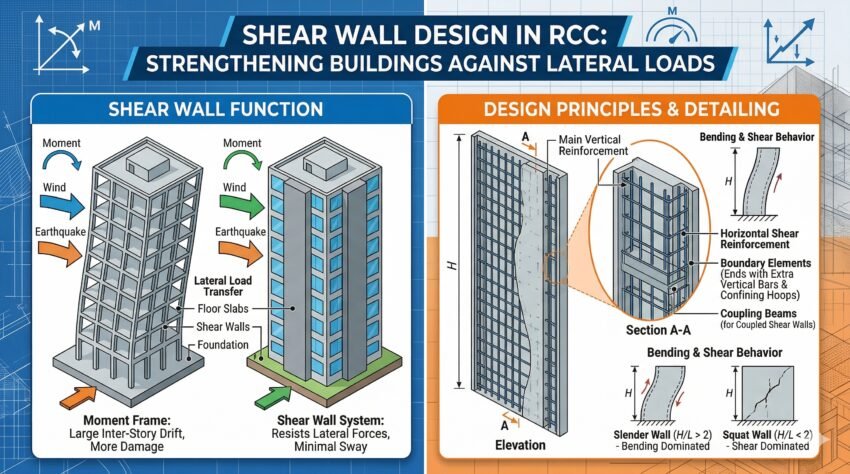

A shear wall is a vertical structural element, often made of reinforced concrete or other materials, that is designed to resist horizontal forces (lateral loads) such as wind and seismic (earthquake) forces. In a building, shear walls act like upright wide beams, taking the push of wind or earthquake and channeling those forces down into the foundation of the structure. This prevents the building from excessive swaying or even collapsing under sideways pressure.
The primary purpose of shear walls is to provide strength and stiffness against these lateral forces. They add significant lateral strength and stiffness. These leads building sway less during earthquake. By reducing how far a building leans or sways during events like strong winds or quakes, shear walls protect both the structural integrity of the buildings and the non-structural components (like windows and interior walls) from damage.
Key Design Principles and Considerations of Shear Wall
Designing a shear wall involves several key considerations to ensure it performs effectively. Important factors include the choice of materials, the dimensions and shape of the wall, and its placement within the building. Each of these are discussed below:
Materials for Shear Wall
Shear walls can be constructed from different materials depending on the building type. Most commonly in modern buildings, they are made of reinforced concrete (concrete with steel reinforcing bars), which provides high strength and stiffness. However, other materials are also used: for example, masonry (brick or concrete block) shear walls are common in low- and mid-rise structures, steel plate shear walls consist of steel panels and are sometimes used in high-seismic zones, and wood-framed shear walls (often with plywood or oriented strand board sheathing) are used in low-rise buildings and houses.
In many earthquake-prone countries like the USA and New Zealand, even wooden homes rely on plywood or gypsum-board shear walls for lateral bracing. Each material has its own properties — concrete and steel walls are very strong and can be made quite tall, masonry walls are sturdy for smaller buildings, and wood-sheathed walls are lightweight and flexible for houses.
Dimensions and Shape of Shear Wall
The size and proportions of a shear wall are critical for its performance. Typically, a shear wall runs vertically from the foundation all the way to the top of the building as one continuous element. The wall is usually much taller and longer than it is thick (often a thin wall with a large planar area). In practice, the thickness of concrete shear walls in buildings can range from around 150 mm (6 inches) in thinner walls up to about 300–400 mm (12–16 inches) or more in very tall buildings. The other two dimensions (height and length along the wall) are much larger, giving the wall an “oblong” cross-section (one dimension is much larger than the other).
A common shape is a simple rectangle, but engineers often design L-shaped, T-shaped, or U-shaped shear walls as well, especially around elevator shafts or stairwells, where walls along two perpendicular directions can combine to form a stronger core. These shapes increase stiffness in multiple directions. The general rule is that a taller building needs either thicker or longer shear walls (or more of them) to safely resist greater forces.
Orientation of Shear Walls in the Building
The location of shear walls in the building’s floor plan greatly affects how well they do their job. To be effective, shear walls should be placed symmetrically if possible and along the building’s length and width (both main directions). Symmetrical placement (for example, having shear walls evenly distributed on both the left and right sides of a building, or in all four corners) prevents torsion in columns in the buildings. If shear walls were only on one side of a building, an earthquake could make the building twist (torsion) because the resistance is off-center. So designers often put shear walls in balanced positions — for instance, at the center in a core and at opposite exterior walls — to keep the structure’s response uniform.
A very common placement is around elevator shafts and stairwells, forming a shear wall core in the middle of the building. This central core takes on the lateral forces from all directions. They also conveniently use the space needed for elevators/stairs as part of the structural system. Shear walls can be located along the perimeter (outer walls) of the building; walls at the perimeter are beneficial for resisting twisting and can directly brace the exterior. In any case, architects and structure engineers coordinate on wall placement so that the walls do not interfere with the building’s function, while still providing the needed support.
Large openings (doors or windows) can be included in shear walls, but must be kept to a minimum and located thoughtfully. If too much of a shear wall is cut out for openings, it weakens the wall. So designers need to limit opening sizes or provide additional reinforcement around them to ensure the wall remains effective at carrying lateral loads.
In conclusion, shear walls are a cornerstone element for earthquake-resistant construction. They serve as robust vertical plates that guard buildings against lateral forces. Whether it’s a skyscraper in a windy city or a house in an earthquake zone, shear walls help ensure that when nature puts a building to the test, the building passes with flying colors – standing strong and keeping its occupants safe.
